Features:
Absorbing experience worldwide, own-researched and developed plastic mixing dryer gives equal hot air blowing and material mixing, high drying effect, short drying time, accurate temperature control. High accuracy regulator is lowering temperature error, saving time and labor cost.

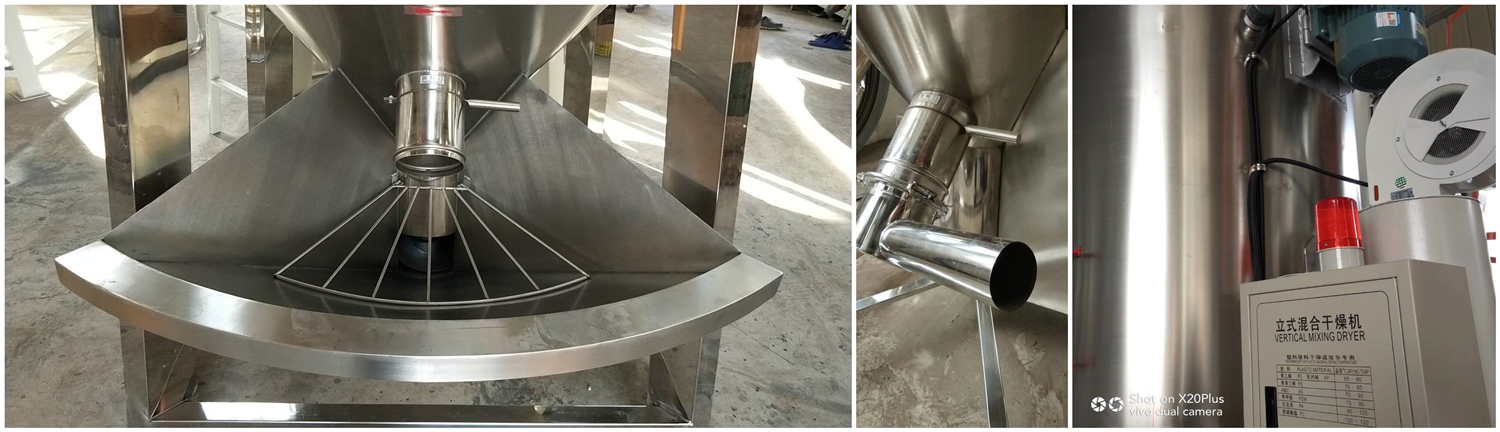

1.The barrel and agitating blade of mixing dryer are all made of stainless steel materials.
2.There are servicing doors on the upper and lower parts of the barrel,easy for cleaning.
3.It can be mixed in a short time.
Main parameter:
Model | WPHG-500 | WPHG-1000 | WPHG-2000 | WPHG-3000 |
Capacity | 500 kg | 1000 kg | 2000 kg | 3000 kg |
Motor power | 2.2 kW | 3 kW | 4 kW | 5.5 kW |
Blower power | 1.1 kW | 1.5 kW | 2.2 kW | 3 kW |
Heating power | 24 kW | 36 kW | 42 kW | 48 kW |
Material | 2mm stainless steel | 2.5mm stainless steel | ||
Main shaft | 60x4mm stainless steel seamless tube | |||
Center lifting diameter | 219mm stainless steel tube | 273mm stainless steel tube | ||
Center supportor | 32mm stainless steel tube | 38mm stainless steel tube | ||
Blade | 3mm stainless steel | |||
Rack | 80x80x3mm stainless steel square tube | 100x100x2mm stainless steel square tube | 120x120x3mm stainless steel square tube | 120x120x3mm stainless steel square tube |
Dimension | 2000×2000×2500mm | 2200×2200×2750mm | 2000×2200×3400mm | 2500×2500×3400mm |
Weight | 450 kg | 600 kg | 850 kg | 1150 kg |
Electrical appliances brand | TENGEN | |||
Remark | With material level alarm device | With material level alarm device and the access ladder | ||
