Features:

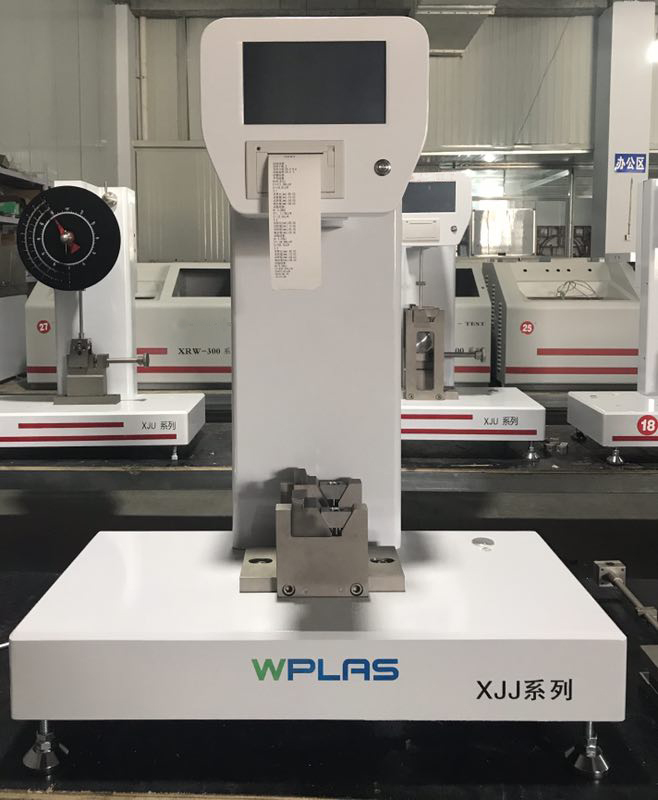

The simply supported beam impact testing machine is suitable for PP-H, PP-B, PPR, UPVC, CPVC, ABS and ASA pipe etc.
This product testing range wide, with PLC touch screen control and display, testing result auto calculate and with U-disc storage data function, can be edit printing, and with energy loss auto amend function, easy operation and testing result precise and reliable.
Main parameter:
Model | XJJD-50A | |||||
Impact energy | 15 J | |||||
Impact speed | 3.8m/s | |||||
Bob pre-angle | 150° | |||||
Impact blade fillet radius | (2±0.5）mm | |||||
Impact pendulum torque | pd7.5=4.01924Nm | pd15=8.03848Nm | ||||
pd25=13.39746Nm | pd50=26.79492Nm | |||||
Hit center distance | 395mm | |||||
Impact blade included angle | （30±1）º | |||||
Jaw fillet radius | （1.0±0.1）mm | |||||
Jaw support line distance | 62mm | |||||
Scale division | Energy range (J): | 0～7.5 | 0～15.0 | 0～25.0 | 0～50.0 | |
Dividing value (J): | 0.075 | 0.150 | 0.250 | 0.500 | ||
Dimension | Length*width*height 550mmx300mmx890mm | |||||
Space needed | Front and back 0.4m, left and right 1.5m, up 1.5m | |||||
Power supply | 100VA 220VAC 50HZ | |||||
