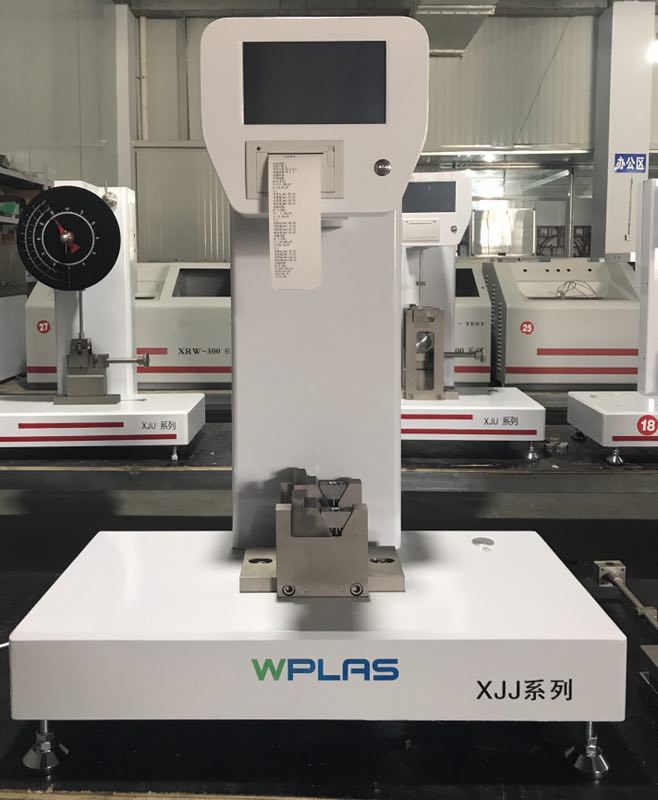

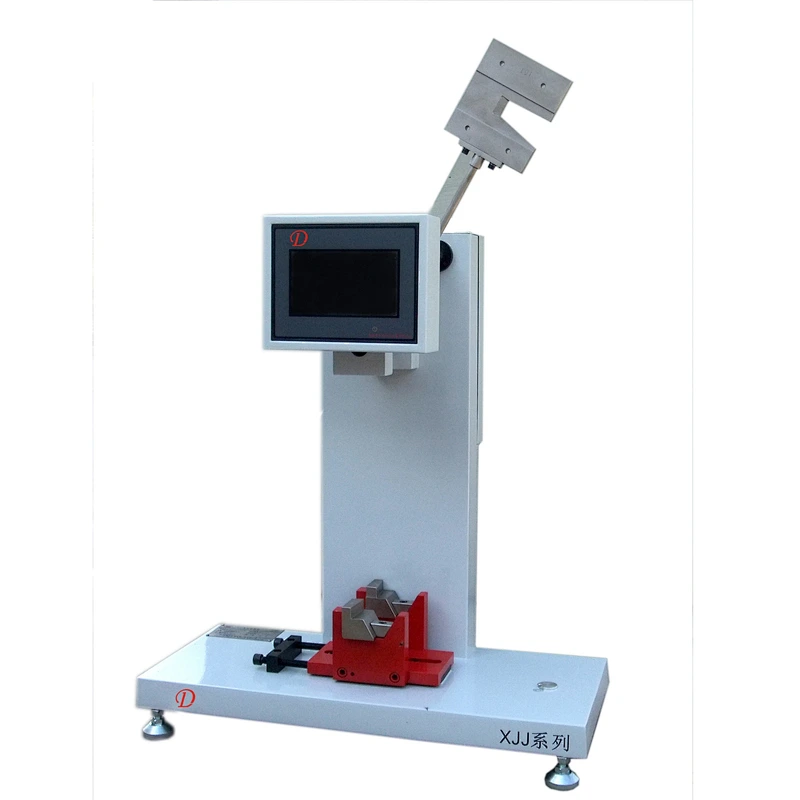

مجرد دعم شعاع آلة اختبار تأثير

Model

XJJD-50A

Impact energy

15 J

Impact speed

3.8m/s

Bob pre-angle

150°

Impact blade fillet radius

(2±0.5）mm

Impact pendulum torque

pd7.5=4.01924Nm

pd15=8.03848Nm

pd25=13.39746Nm

pd50=26.79492Nm

Hit center distance

395mm

Impact blade included angle

（30±1）º

Jaw fillet radius

（1.0±0.1）mm

Jaw support line distance

62mm

Scale division

Energy range (J):

0～7.5

0～15.0

0～25.0

0～50.0

Dividing value (J):

0.075

0.150

0.250

0.500

Dimension

Length*width*height 550mmx300mmx890mm

Space needed

Front and back 0.4m, left and right 1.5m, up 1.5m

Power supply

100VA  220VAC  50HZ
