Caractéristiques:
Haute efficacité, qualité et performance stables
Application:

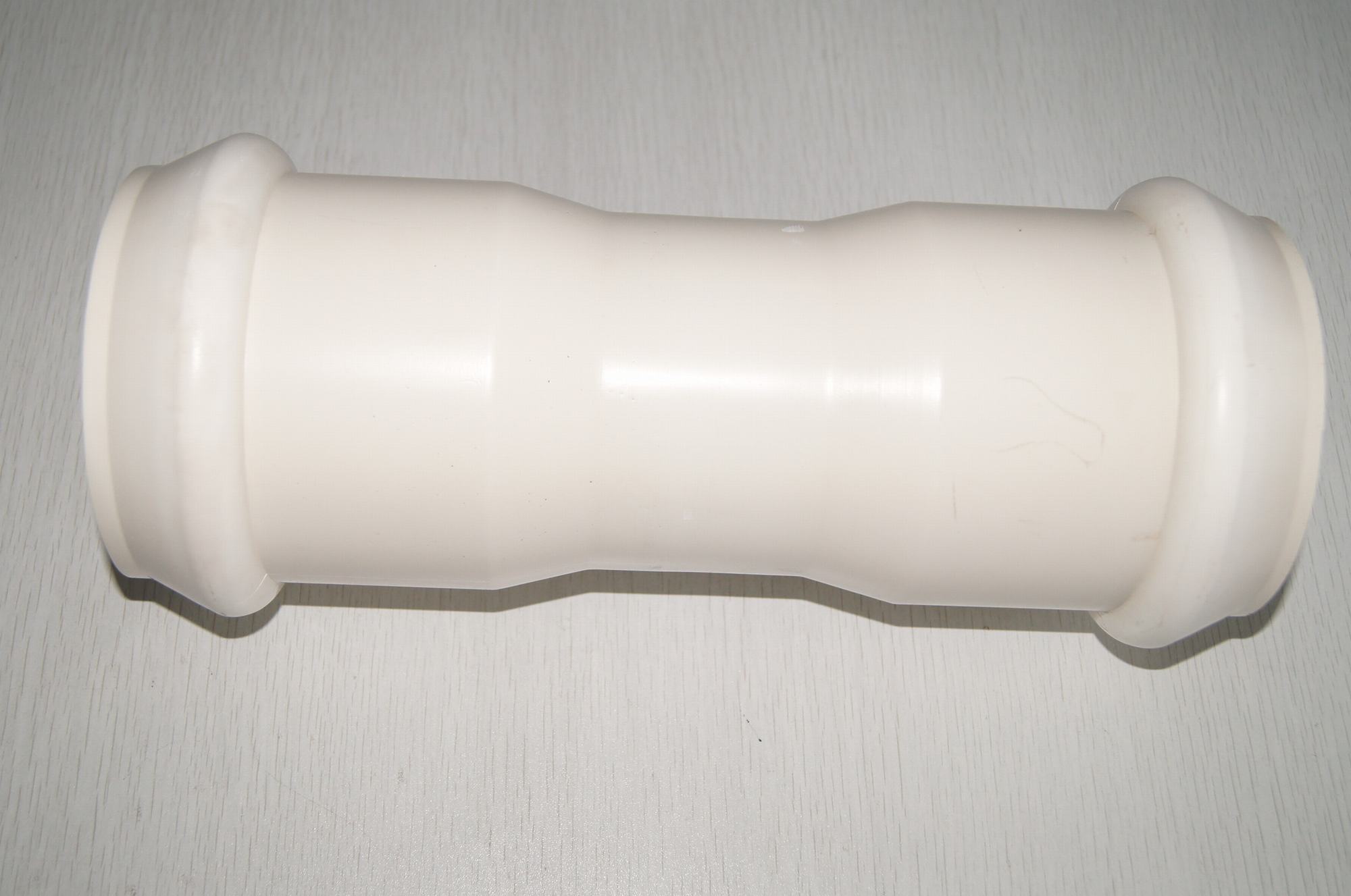

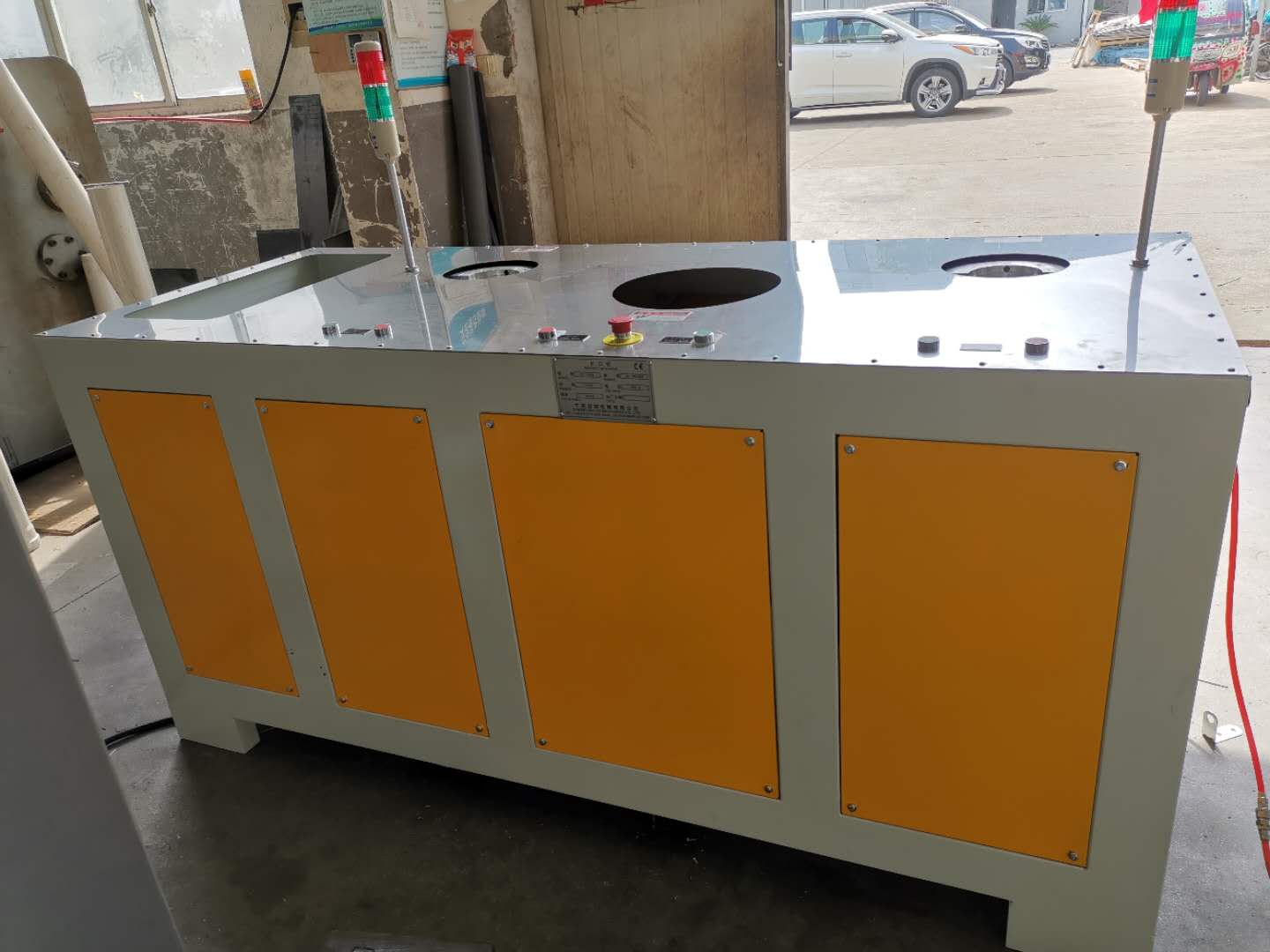

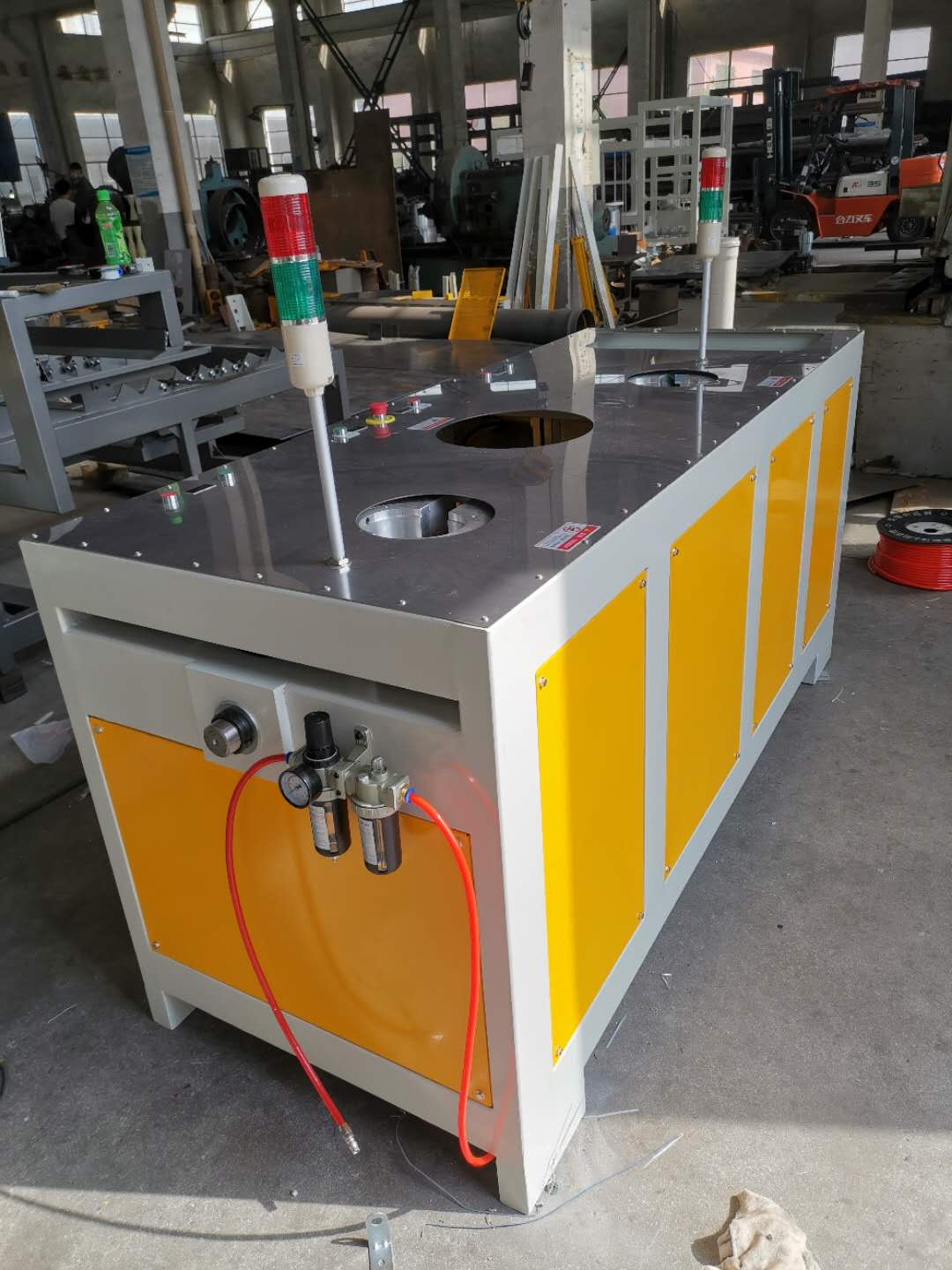

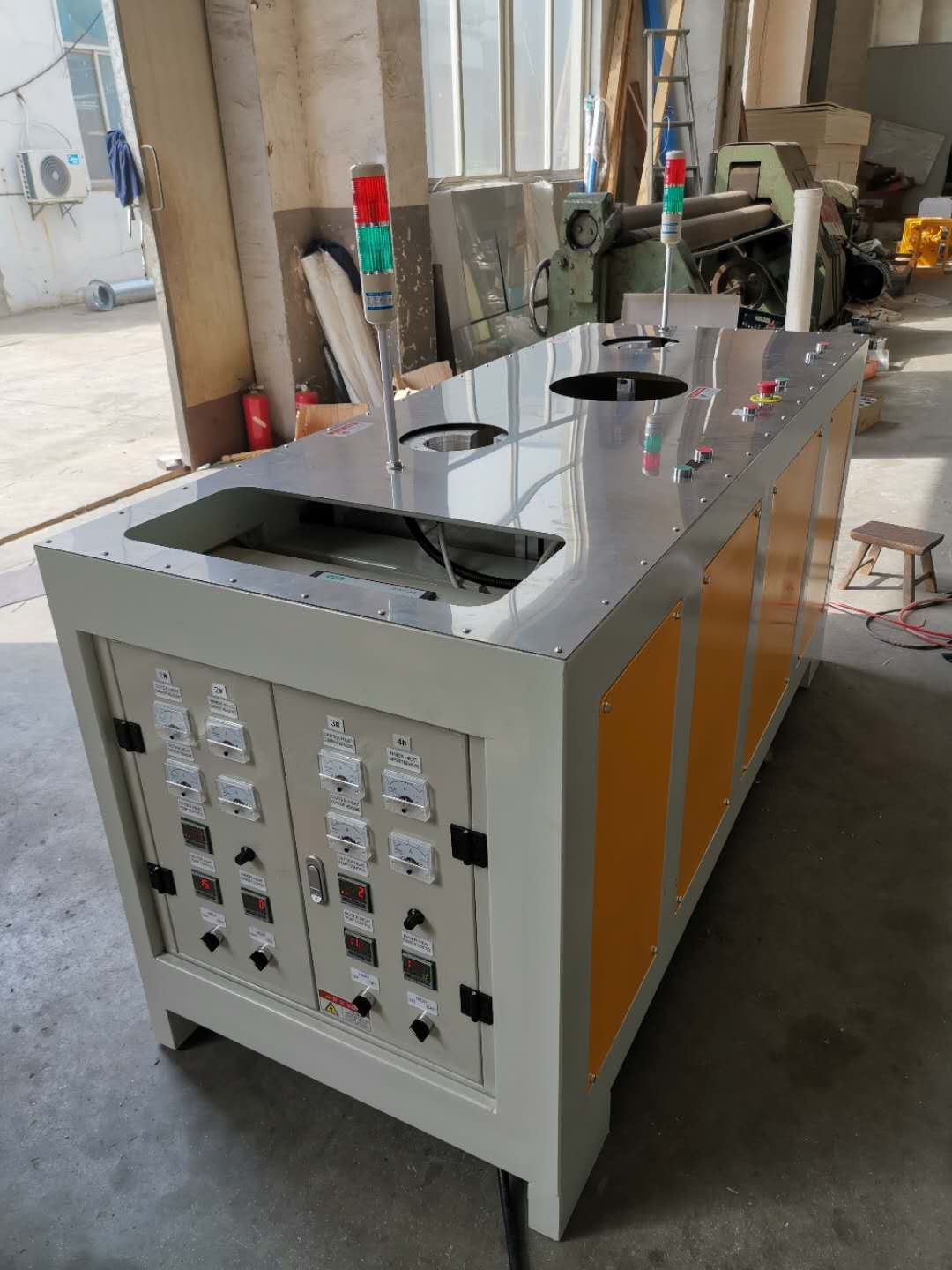

La machine manuelle de gainage de tuyaux de la série CY - 160b est particulièrement adaptée à la gaine de tuyaux en PVC et de tuyaux courts. La gamme d'utilisation est de 50mm à 160mm.
Principaux paramètres:
Pipe standards | Model | CY-160B |
Pipe Diameter | 50mm - 160mm | |
Pipe Fitting Length | 0.25m – 0.5m | |
Heating | Oven | 2 heating stations, Aluminum alloy heating block heating |
Heating Power | 10KW | |
Pneumatic | Compressed air pressure | 0.6Mpa |
J-type | Blow air by inner mould, and take shape by outer mould | |
Cooling type | Air - cooling | |
Machine speed | 40S to 100S | |
J-type：45# steel with Cr electroplating | ||
Equipment Specification | Total power | 13KW |
Machine weight | 780kg | |
Machine dimension | 2100mm(L)×800mm(W)×1450mm(H) |
