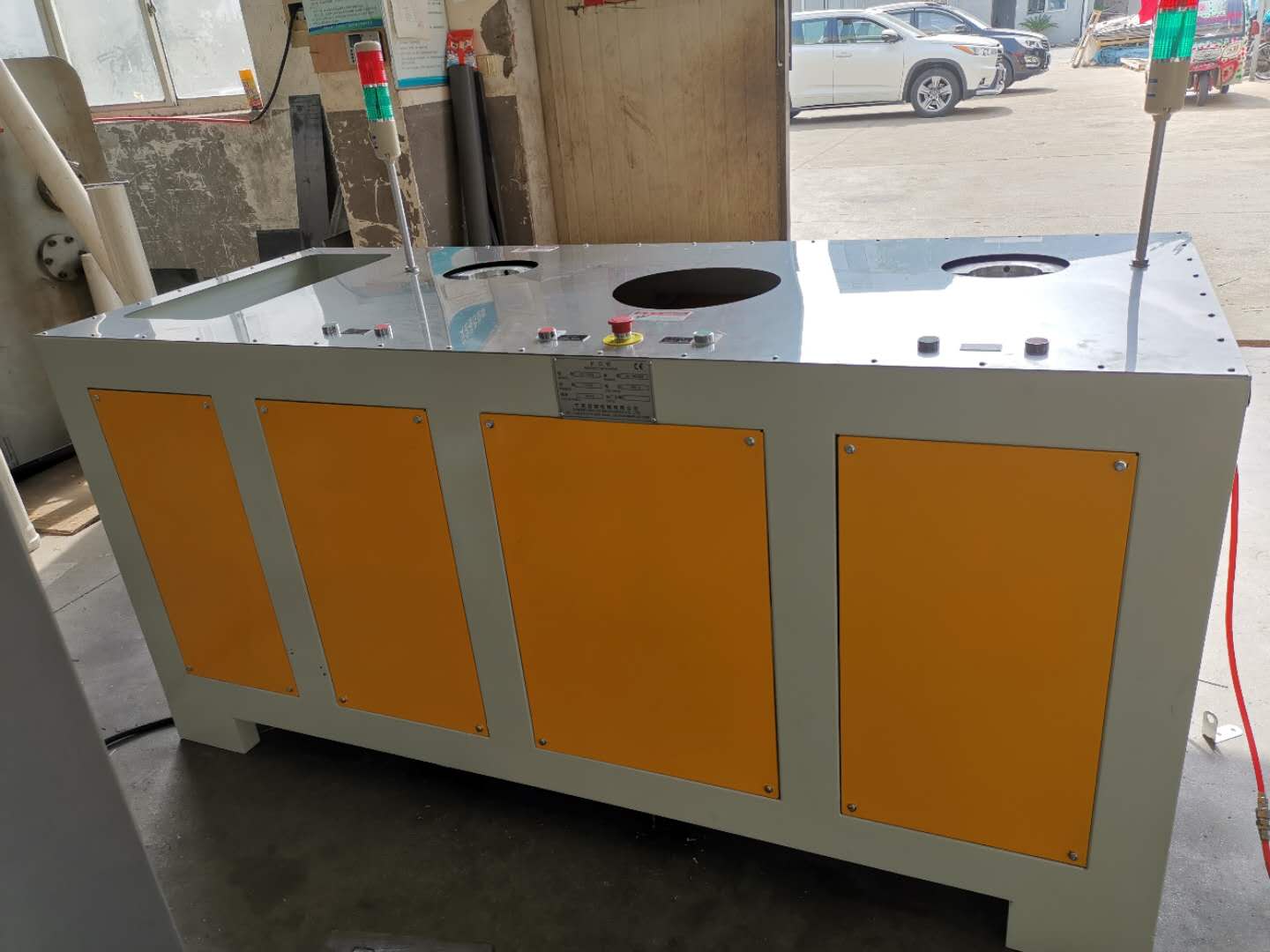

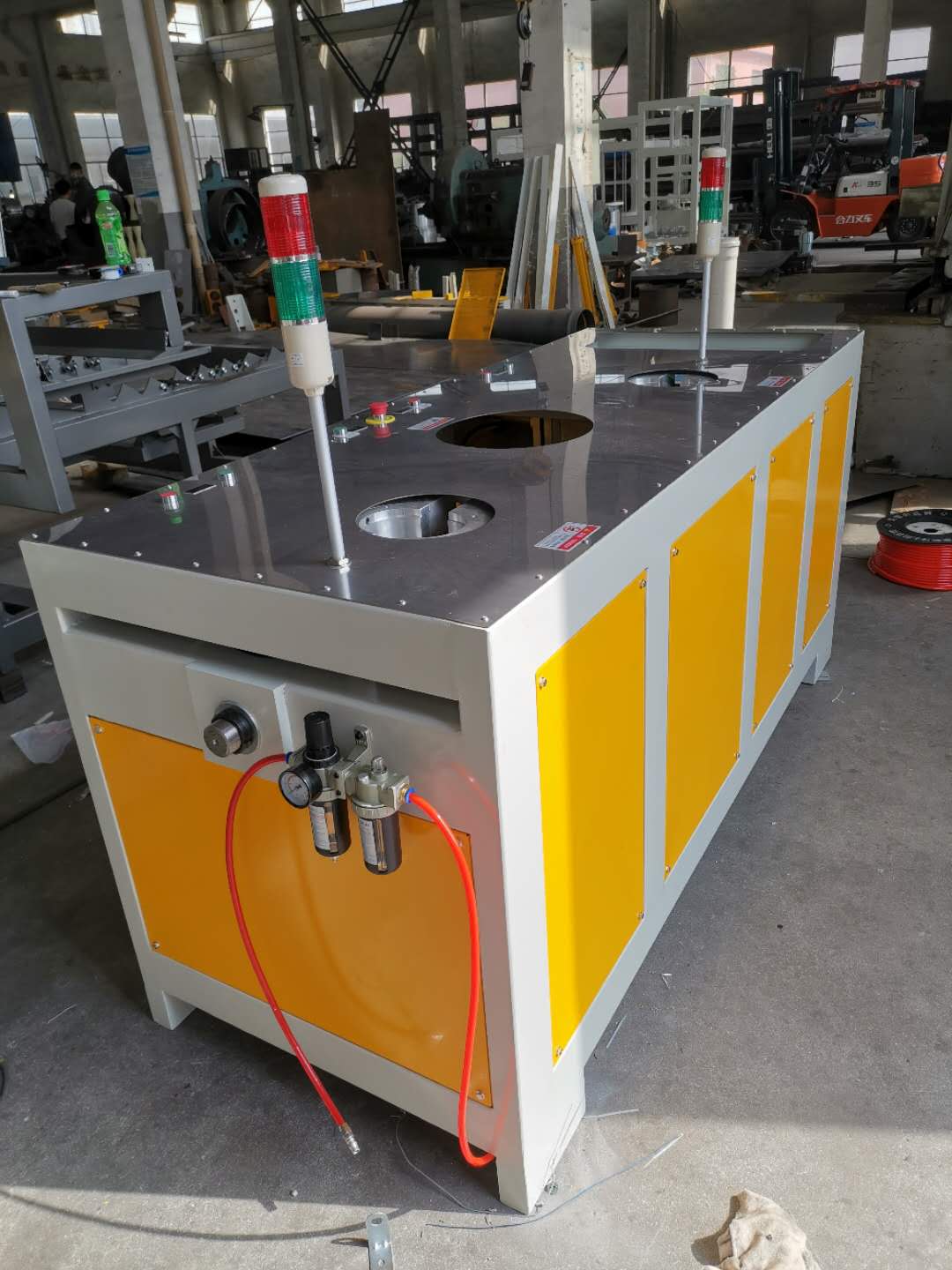

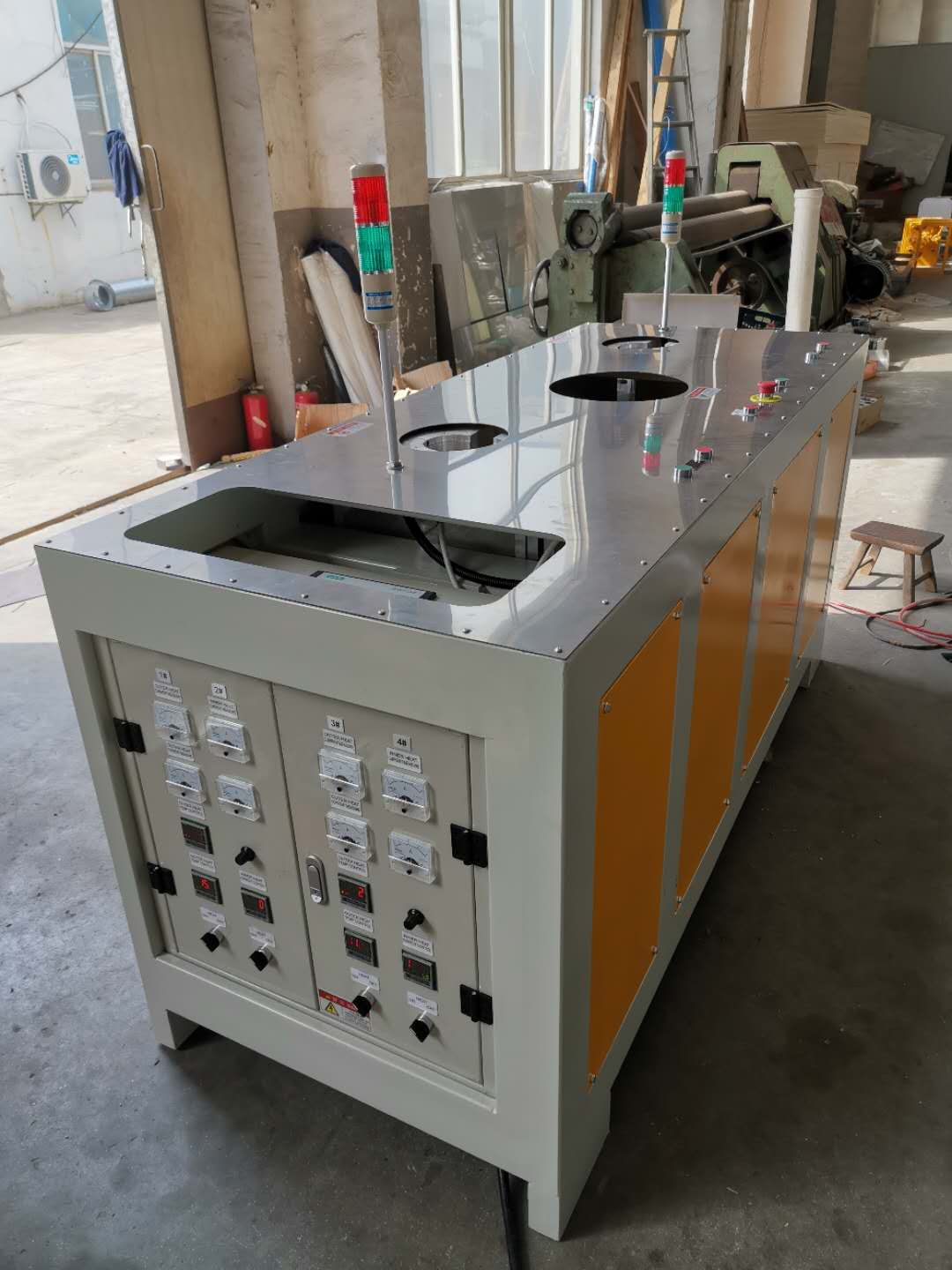

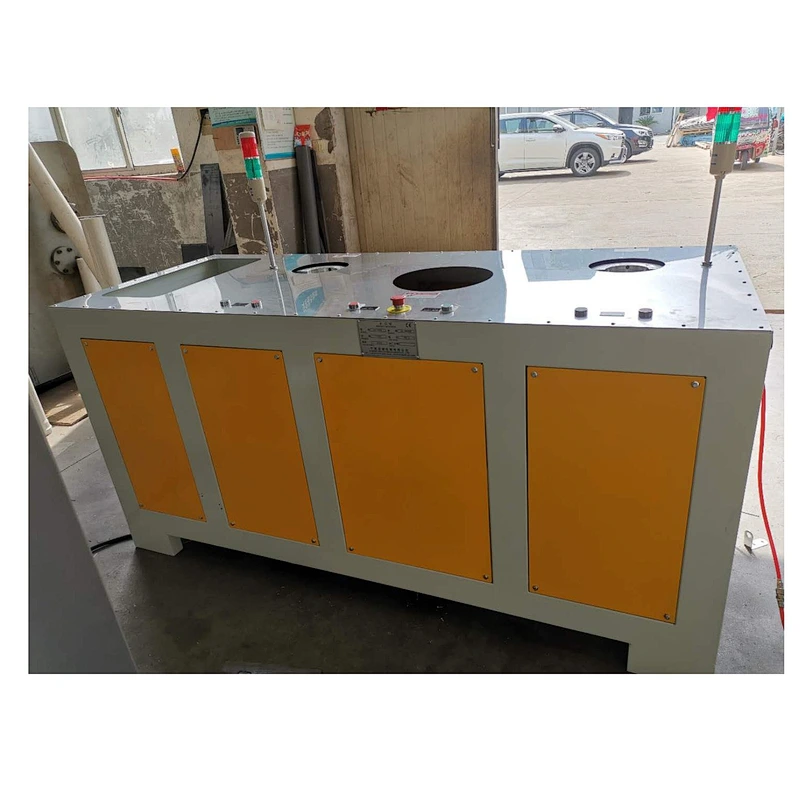

تركيب آلة تجميع

Pipe

standards

Model

CY-160B

Pipe Diameter

50mm - 160mm

Pipe Fitting Length

0.25m – 0.5m

Heating

Oven

2 heating stations, Aluminum alloy heating block heating

Heating Power

10KW

Pneumatic

Compressed air pressure

0.6Mpa

J-type

Blow air by inner mould, and take shape by outer mould

Cooling type

Air - cooling

Machine speed

40S to 100S

J-type：45# steel with Cr electroplating

Equipment

Specification

Total power

13KW

Machine weight

780kg

Machine dimension

2100mm(L)×800mm(W)×1450mm(H)
