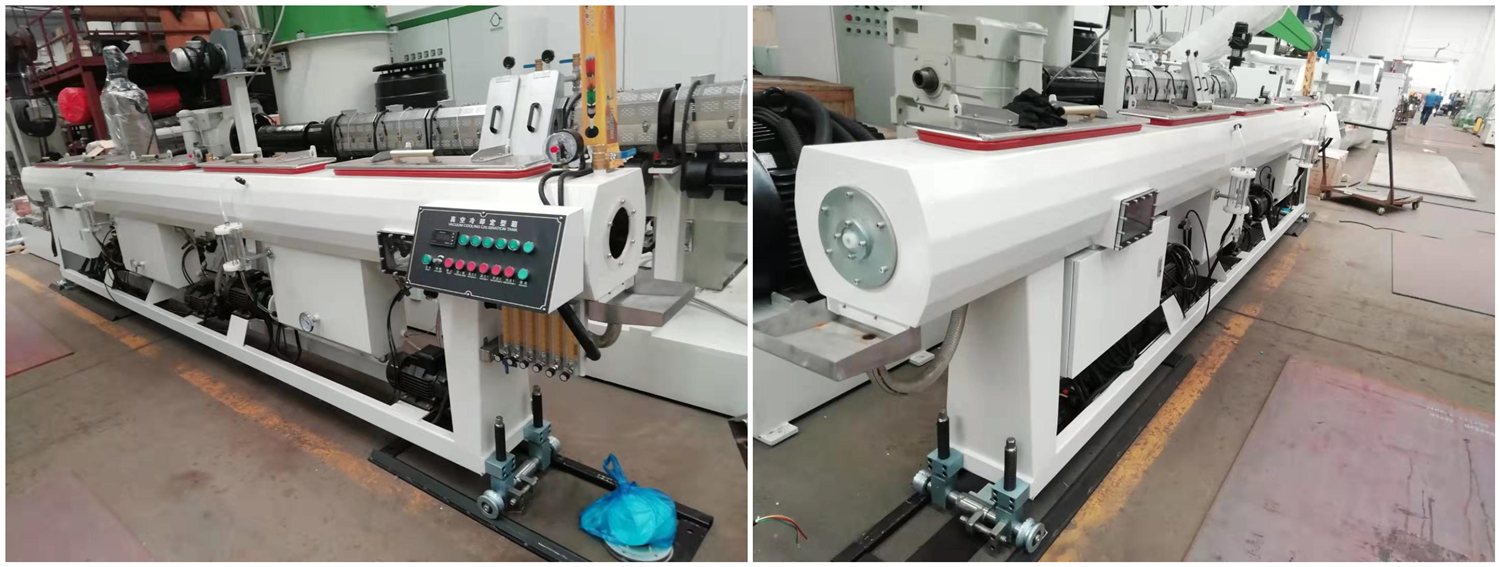

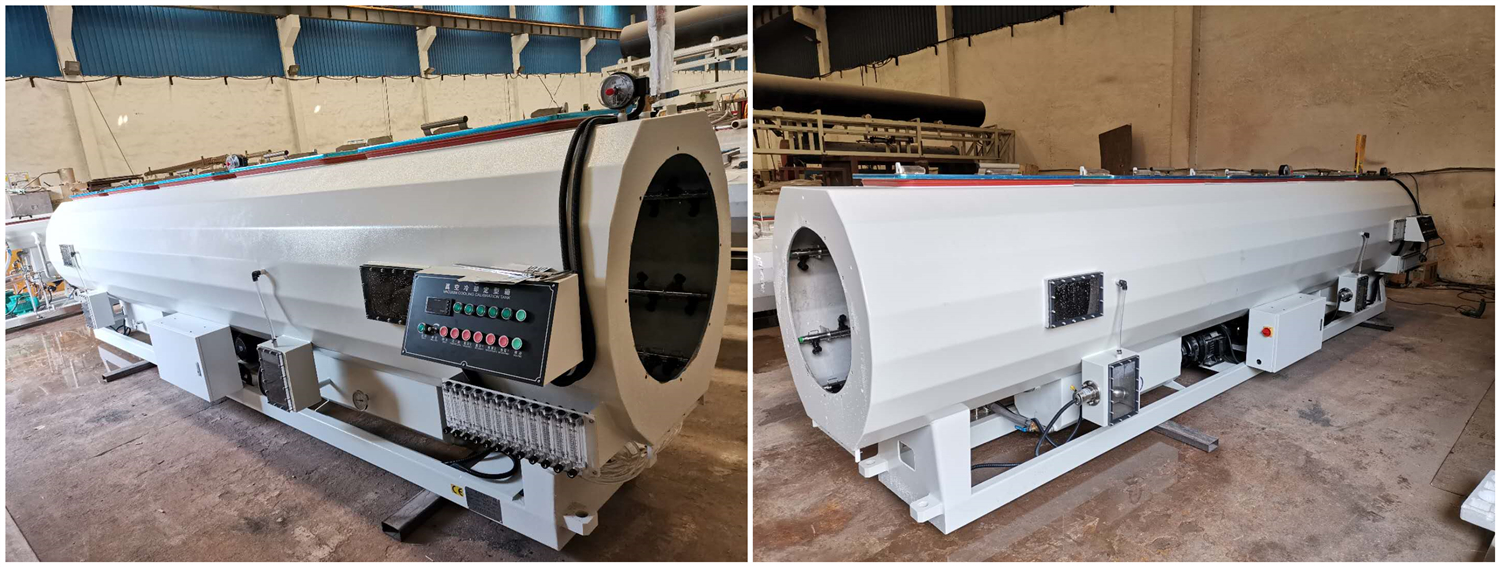

فراغ خزان أنبوبي

Model

Working range (mm)

Tank length (mm)

Tank thickness (mm)

Vacuum pump

(kW)

Water pump (kW)

Moving motor power (kW)

Central height (mm)

ZD-63

16-63

9000/5800

3

1.5+2.2

3+4

0.75

1000-1050

ZD-110

20-110

9000/5800

3

2.2+2.2

3+4

1.1

1000-1050

ZD-160

50-160

9000/5800

3

2.2+3

4+5.5

1.1

1000-1050

ZD-250

90-250

9000/5800

4

3+4

5.5+5.5

1.5

1000-1050

ZD-315

90-315

9000/5800

4

4+5.5

5.5+7.5

1.5

1000-1050

ZD-450

110-450

9000/5800

5

5.5+5.5

7.5+7.5

1.5

1100-1150

ZD-630

250-630

2400+9000

6

5.5+5.5*2

7.5+7.5*2

0.75+1.5

1100-1150

ZD-800

400-800

2400+9000

6

5.5+5.5*2

7.5+7.5*2

1.5

1200-1250

ZD-1000

500-1000

2400+10000

8

7.5+5.5*3

7.5+7.5*3

1.5

1400-1450
