Features:
UV laser printer using imported light source, high speed galvanometer, integrated design, all aluminum bracket, with 10.1’’ touch screen, widely used for PPR, PVC, PE etc pipes and profiles. Can print Chinese and English font, number, date, diagram, QR code etc.
1.UV laser printer using high quality imported ultraviolet laser,the focus spot is small,the heat effect is small,the mark effect is clear and beautiful.
2.The software of UV laser printer has powerful functions,supports multiple languages,simple operation and stable performance.
3.UV laser printer adopts automatic structure design,flexible installation,automatic work,save labor costs.
Main parameter:
Model | C-U04H |
Laser transmitter | 5W Ultraviolet laser transmitter |
Printing size | 110m*110mm (Other optional) |
Working distance | 210±2mm |
Words height | 0.5mm-100mm |
Line speed | 0-100 m/min (depend on material and output power) |
Output power | 4W |
Laser safety class | Class IV |
System protection class | IP55 |
Cooling type | Water cooling |
Environment temperature | -10℃-60℃ |
Power supply | 220V±22V/50Hz |

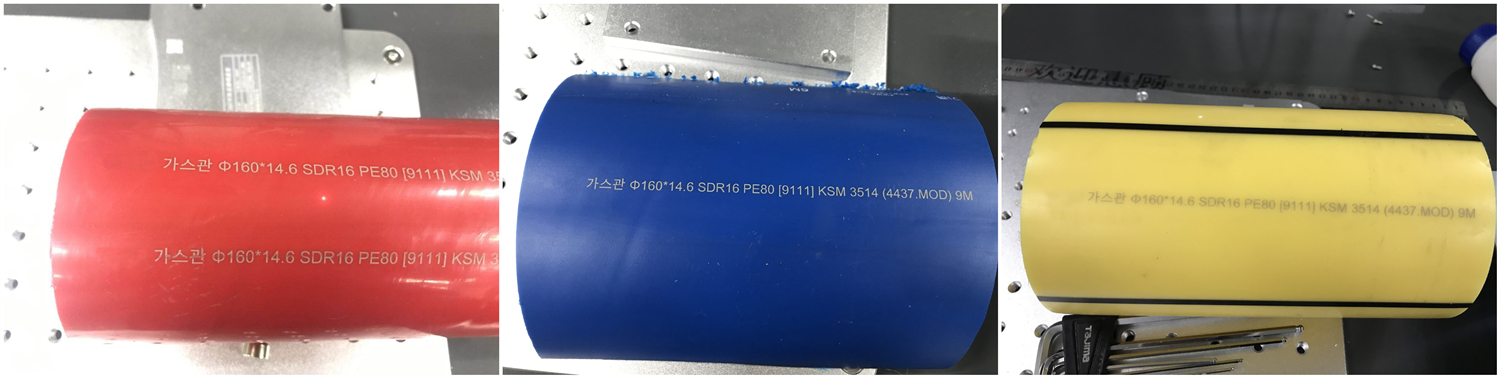

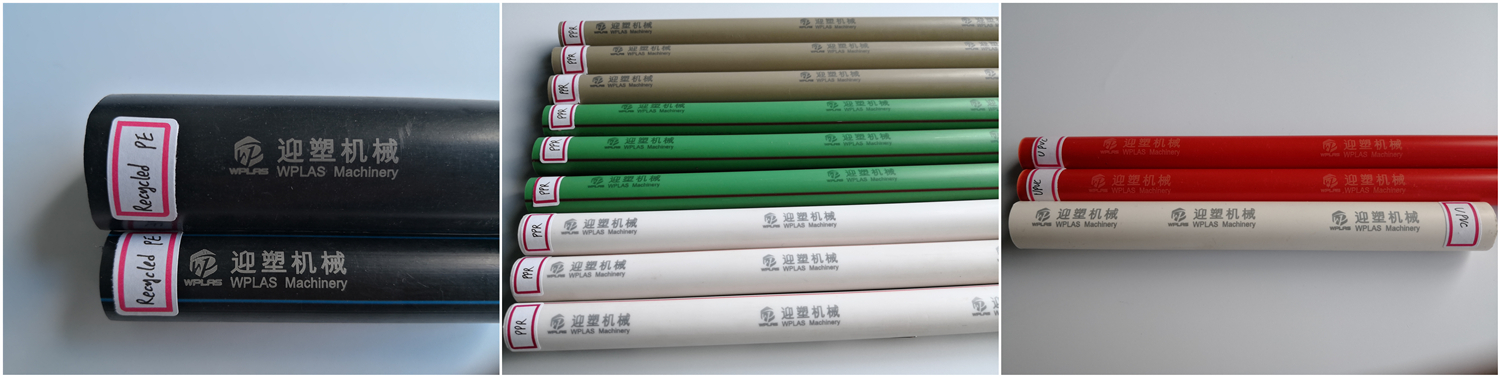

Remark | Suitable for PPR, HDPE & PVC pipes with wonderful printing function |
