Features:

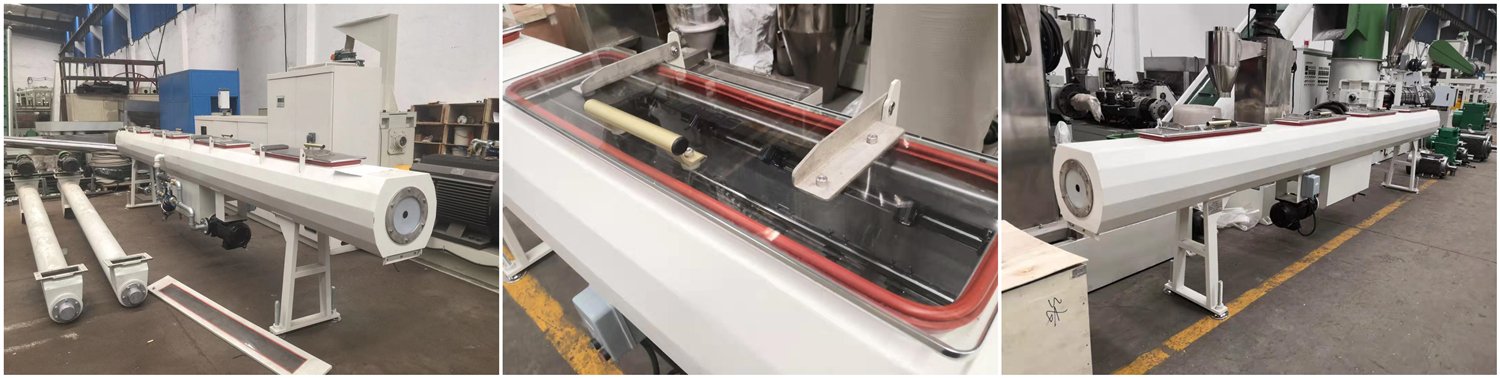

1. 304 stainless steel tank, stainless steel cover plate
2. Nozzle head make high-speed spray vortex to reach good cooling performance
3. With water level control and water temperature control system
4. Application of European PE filters
5. Can provide different length of tank according to customer pipe size range
6. Adjustable supporting rollers to be suitable for different pipe sizes
Main parameter:
Model | Working range (mm) | Tank length (mm) | Tank thickness (mm) | Water pump (kW) | Tank style | Central height (mm) |
PL-63 | 16-63 | 5800 | 2 | 3 | Cover plate Structure | 1000-1050 |
PL-110 | 20-110 | 5800 | 2 | 4 | 1000-1050 | |
PL-160 | 50-160 | 5800 | 2 | 4 | 1000-1050 | |
PL-250 | 90-250 | 5800 | 2 | 4 | 1000-1050 | |
PL-315 | 90-315 | 5800 | 2 | 5.5 | 1000-1050 | |
PL-450 | 110-450 | 5800 | 2 | 5.5 | Tempered glass sliding door structure | 1100-1150 |
PL-630 | 250-630 | 5800 | 2 | 7.5 | 1100-1150 | |
PL-800 | 400-800 | 5800 | 2 | 7.5 | 1200-1250 | |
PL-1000 | 500-1000 | 5800 | 3 | 7.5 | 1400-1450 |
