Features:
Fiber laser printer with high electro-optic transfer rate, adopt air cooling way, small dimension, high quality output beam, high reliable, can carve metal material and part of non-metallic material, widely used in plastic pipe such as PVC, PE, PPR, etc.
1.Fiber laser printer adopts high quality fiber laser(Famous China brand),stable energy output,clear and beautiful effect of making.
2.The software of fiber laser printer has powerful functions,supports multiple languages,simple operation and stable performance.
3.Automatic structure design,compact size,flexible installation,automatic work,save labor costs.

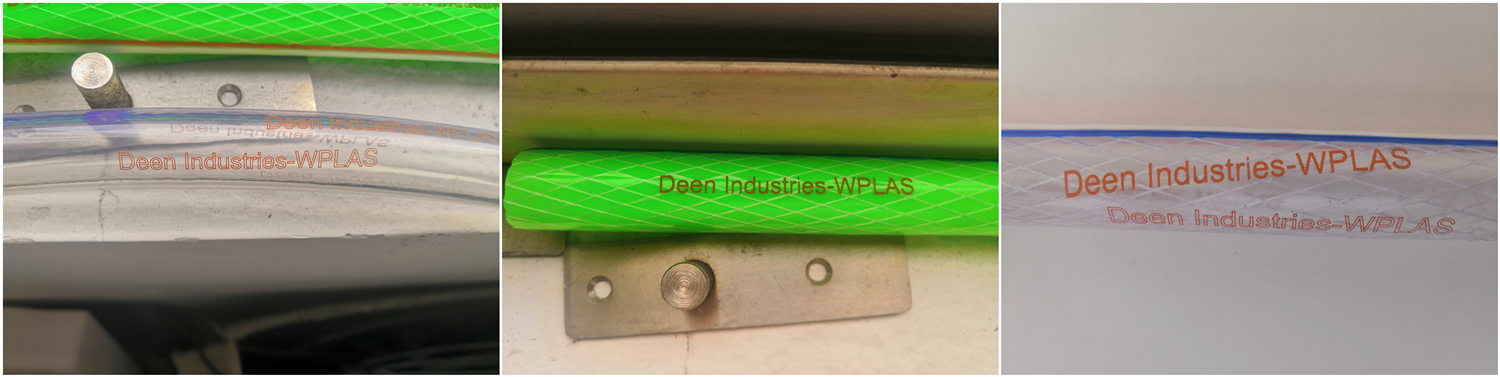

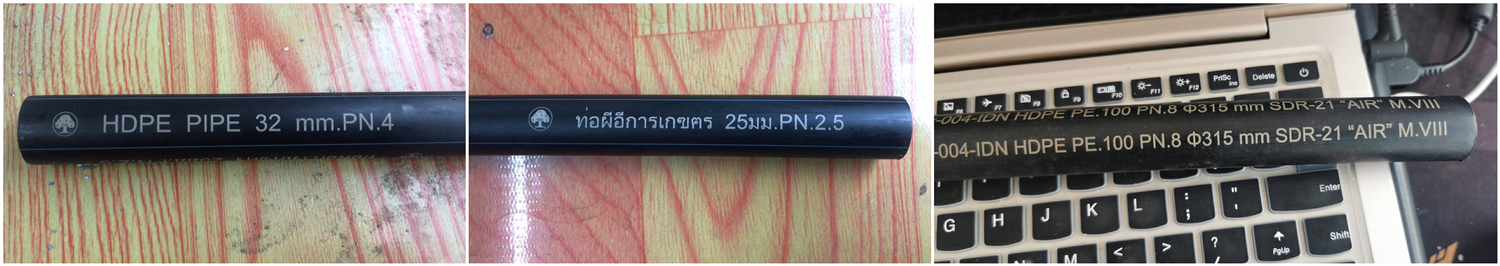

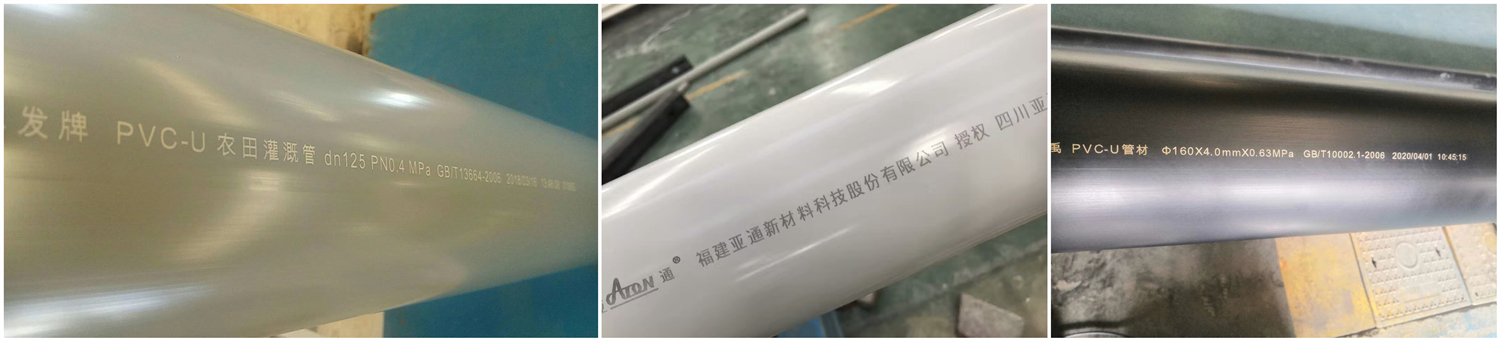

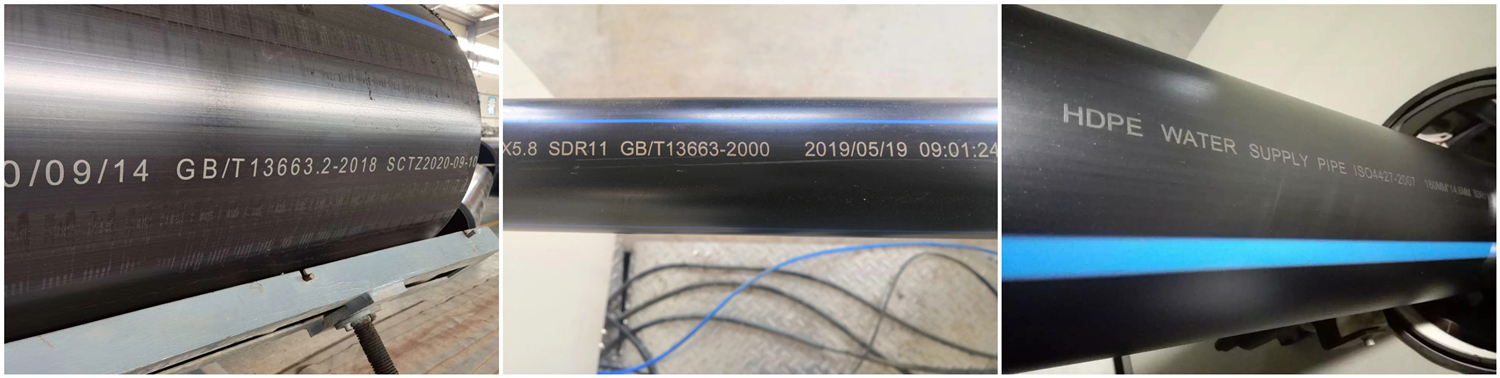

Fiber laser printer can print every complex logo, Chinese font, Arabic alphabet, date, QR code, meter-counting, etc.
Automatic length-counting rollers device. Display can switch in both Chinese and English.
Main parameter:
Laser transmitter | Fiber laser transmitter | ||
Control system | Laser control system (very easy to operate) | ||
Supportor | Total aluminium alloy | ||
Laser printing speed | 30m/min for PE pipe, 20m/min for PVC pipe, 15m/min for PPR pipe. | ||
Printing character height | 1-100mm, row quantity and height of character are unlimited. Depth of the laser is 0.001-0.5 mm is adjustable. | ||
Laser printer power | 20W | 30W | 50W |
Use life | Use life: 10 years. Laser transmitter can work for 100000 hours more. Machine can continuously working more than 1 year. | ||
Environment temperature | Working temperature: -20℃---50℃, machine will open self-protection program and stop working when environment temperature is above 50℃ | ||
Remark | Equipped with high speed galvanometer and guarantee 2 years | ||
