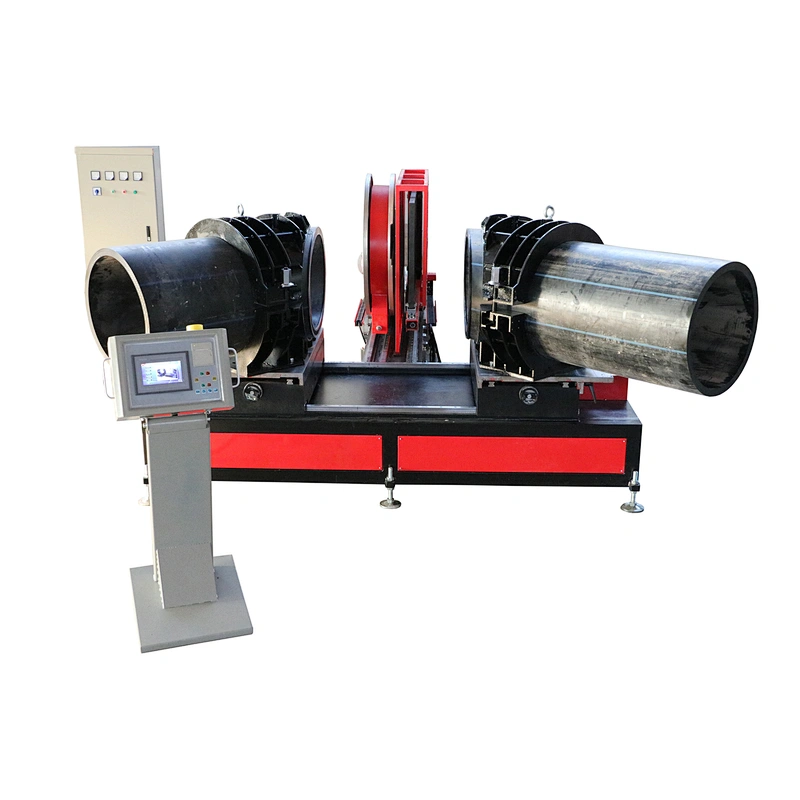

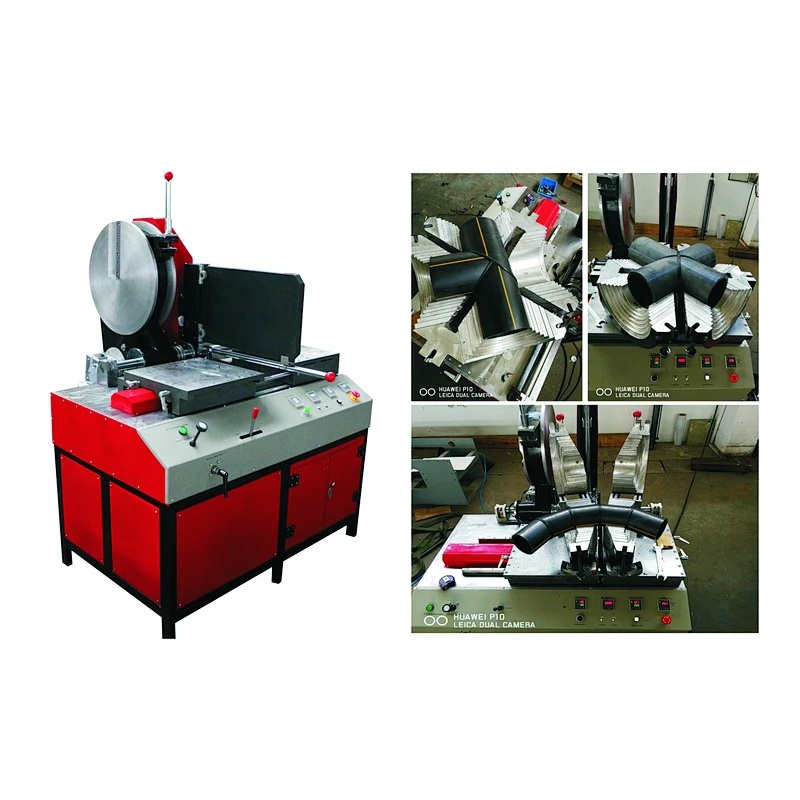

Angle Fusion Machine

Model NO.: SHG Series

Quantity:

Product Description

Features:
1. Suitable for fabricating elbow,tee,cross and Y shape(45°and 60°) fittings of PE,PP in workshop, also used to lengthen the injection moulded fitting and make an integrated fitting,integrate structure
2. Nothing remains but to choose the different special clamps while fabricating different fittings
3. Removable PTFE coated heating plate
4. Electric planning tool with safety limit switch
5. Separate two-channel timer records times in soaking and cooling phases
6. Pivoting planning tool and heating plate bring convenience to placing and removing

Main parameter:

Model		SHG315	SHG450	SHG630
Pipe size(mm)		90、110、125、140、160、180、200、225、250、280、315	200、225、250、280、315、355、400、450	315、355、400、450、500、560、630
Application		0-90°Elbow, tee, cross, 45° and 60° wyes (optional parts should be used)	0-90°Elbow, tee, cross, 45° and 60°wyes (optional parts should be used)	0-90°Elbow, tee, cross, 45° and 60°wyes (optional parts should be used)
Heating plate Max. temp		270℃	270℃	270℃
Temp. deviation in surface (170-250℃)		≤±7℃	≤±7℃	≤±7℃
Pressure adjustable ranges		0-6 Mpa	0-16 Mpa	0-16 Mpa
Working voltage		380V/50HZ	380V/50HZ	380V/50HZ
Heating plate power		5KW	12.2 KW	22 KW
Planning tool power		1.5 KW	2.2 KW	3 KW
Hydraulic unit power		0.75 KW	3 KW	4 KW
Total power		7.25 KW	17.4 KW	29 KW
Weight		760 kg (Do not include optional parts)	2850 kg (Do not include optional parts)	3510 kg (Do not include optional parts)
Packing	Cases	4plywood	4 plywood	9 plywood
Packing	Volume	3.1CBM	14.66CBM	22.7CBM

Model		SHG800	SHG1000	SHG1200
Pipe size(mm)		450、500、560、630、710、800	630、710、800、900、1000	630、710、800、900、1000、1200
Application		0-90°Elbow, tee, cross, 45° and 60° wyes (optional parts should be used)	0-90°Elbow, tee, cross, 45° and 60° wyes (optional parts should be used)	0-90°Elbow, tee, cross, 45° and 60° wyes (optional parts should be used)
Heating plate Max. temp		270℃	270℃	270℃
Temp. deviation in surface (170-250℃)		≤±7℃	≤±7℃	≤±7℃
Pressure adjustable ranges		0-16 Mpa	0-16 Mpa	0-16 Mpa
Working voltage		380V/50HZ	380V/50HZ	380V/50HZ
Heating plate power		39.28 KW	60 KW	61.4 KW
Planning tool power		4 KW	4 KW	7.5 KW
Hydraulic unit power		4 KW	7.5 KW	7.5 KW
Total power		47.28 KW	71.5 KW	76.4 KW
Weight		4900 kg (Do not include optional parts)	16000 kg (Do not include optional parts)	18000 kg (Do not include optional parts)
Packing	Cases	11 plywood	11 plywood	11 plywood
Packing	Volume	23.3CBM	41.93CBM	45.93CBM
