Features:

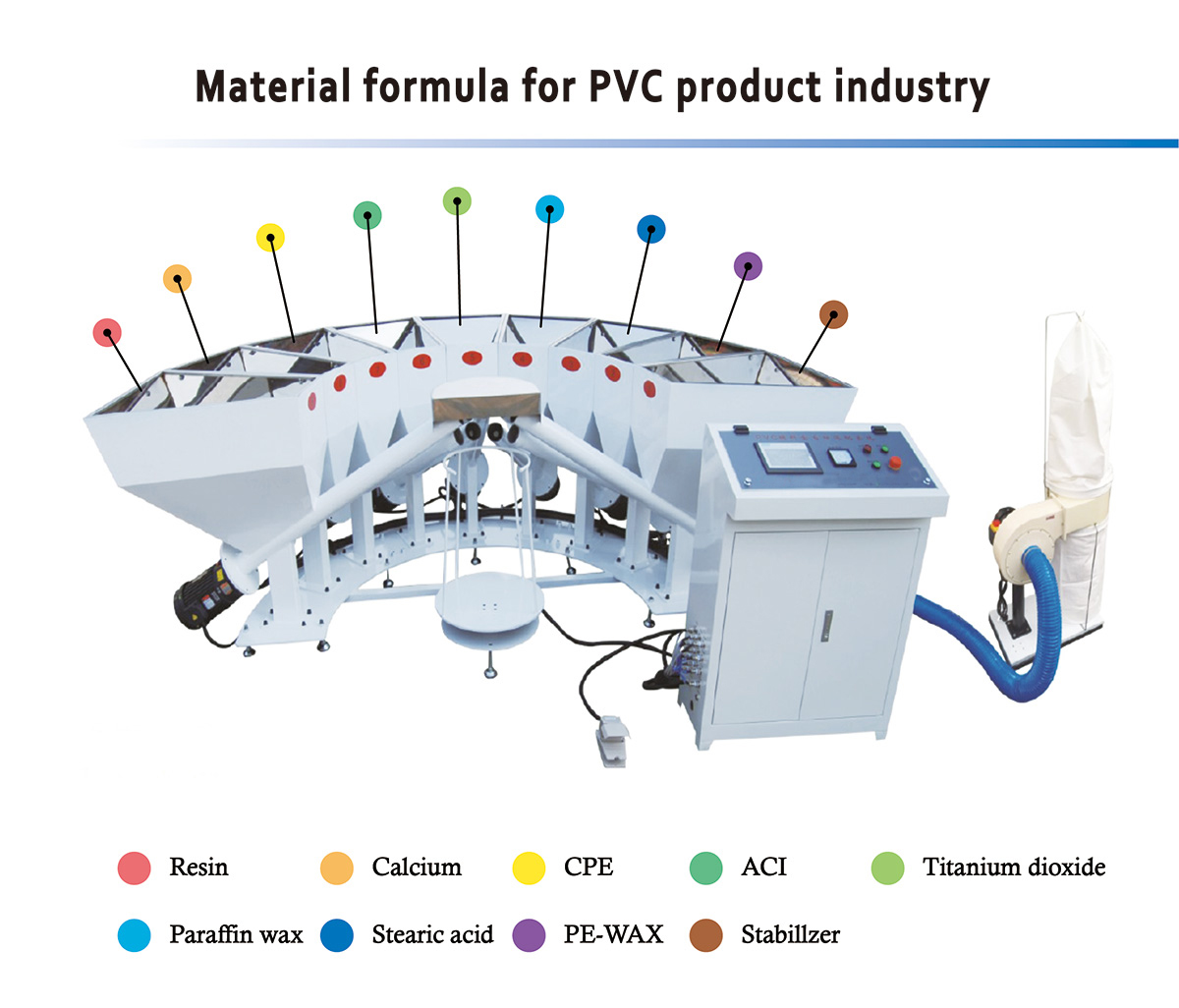

The PVC material automatic weighing machine is suitable for making PVC pipe, profile sheet additive material formula, and rubber products material formula, wire and cable materials formula, etc.
Main parameters:
Hopper material | Stainless steel |
Hopper quantity | 9 pcs |
Hopper capacity | 75 KG (0.15 m3, Three packs of material) |
Feeding mode | Screw conveying |
Feeding control mode | Frequency conversion |
Feeding motor | 1.5KW |
Mixing material motor | 0.2KW×2 (Anti-bridging device) |
Feeding motor quantity | 9 pcs |
Precision | 10g |
Batching time | 100S/20KG |
Total power | 15KW |
Actual running power | ≤1KW |
Dimension | 3200x2000x1100mm |
Electrical System | |
Inverter | ABB |
Contactor | Siemens |
Breaker | Schneider |
Air switch | Schneider |
Reducer | Gear reducer |
Weighing sensor | USA METTLER TOLEDO |
Weighing module | Siemens |
PLC computer | Siemens |
Touch screen | Siemens |
PLC computer, touch screen display warrantee 2 years (non-human damages) | |
